For model Airline 25WG-1571B grey, Montgomery Ward & Co. (Wards, Airline); Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BE6 12AT7 6BA6 6BA6 6AL5 6AV6 6V6 6X5
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Airline 25WG-1571B grey - Montgomery Ward & Co. Wards,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15.5 x 9 x 8.5 inch / 394 x 229 x 216 mm
Notes color grey. see also 1570 brown and 1572 black.
Net weight (2.2 lb = 1 kg) 13 lb (13 lb 0 oz) / 5.902 kg

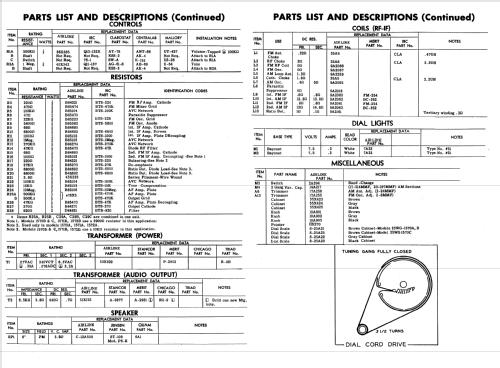

Mentioned in Photofact Folder, Howard W. SAMS (177-4)

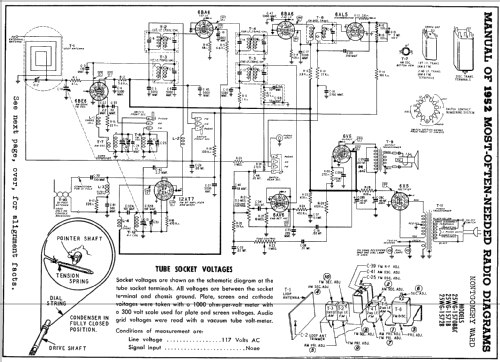

Literature/Schematics (1) Beitman Radio Diagrams, Vol. 12, 1952

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
