• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47798

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

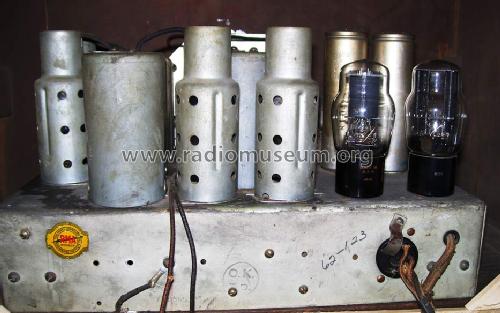

• 6D6 76 6D6 6D6 6B7 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker

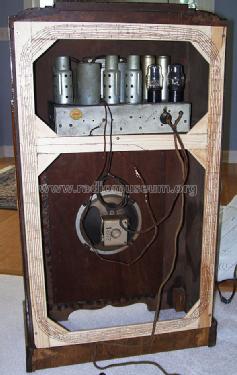

• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline 62-123 - Montgomery Ward & Co. Wards,

• Shape

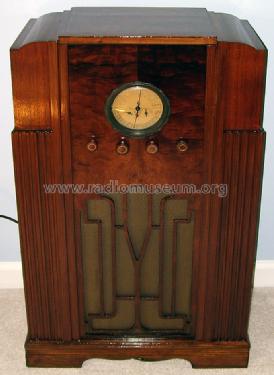

• Console with any shape - in general

• Dimensions (WHD)
• 20.25 x 37 x 10.25 inch / 514 x 940 x 260 mm

• Notes

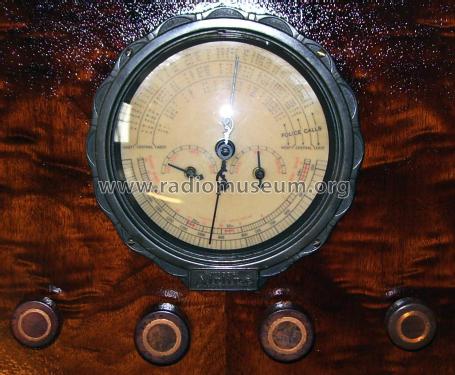

• Broadcast Band: 530 to 1740kc; Shortwave Band: 5.8 to 18.3mc . Console two-tone wood. There is a "A" series and a "B" series according to the schematic - with onnly a change for the padder. The following use the same chassis and schematic: 62-123, 62-131, 62-133, 62-142, 62-144 and 62-152.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition) (Rider's 10-1, 10-2)
