62-196 ; Montgomery Ward & Co (ID = 374791) Radio

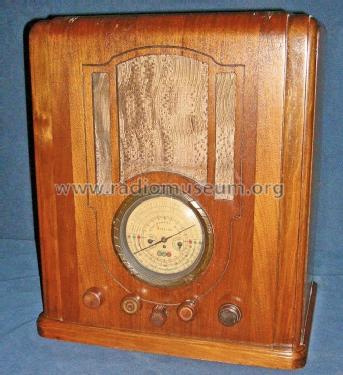

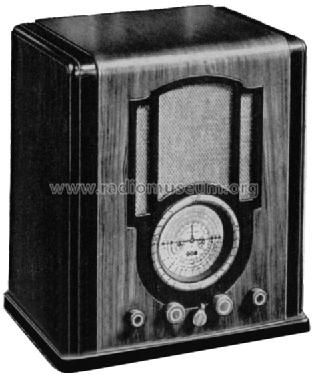

Montgomery Ward & Co: 62-196 [Radio] ID = 374791 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model 62-196, Montgomery Ward & Co. (Wards, Airline); Chicago, IL:
With courtesy by Ebayseller willeezwarez

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K7 or 6D6 6K7 or 6D6 76 6K7 or 6D6 6B7 6F6 or 42 80
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 62-196 - Montgomery Ward & Co. Wards,
Notes BC (535-1730 kHz), TROP (1715-5800 kHz) and SW (5.75-18.3 MHz) bands. Separate oscillator - tube 76. Tubes 6D6 and 42 only used on early models.
External source of data Ernst Erb

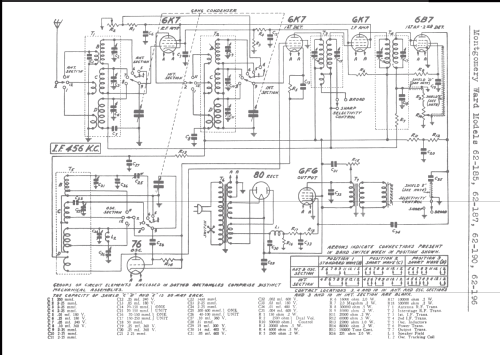

Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Beitman Radio Diagrams, Vol. 01, 1926-1938 (Rider's 6-35, 6-36, 6-37)
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 34.)
Literature/Schematics (2) Machine Age to Jet Age II (page 59.)
Literature/Schematics (3) Cathedral & Tombstone Radios (page 47.)
