• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47886

• • Brand: Airline or Air-Line

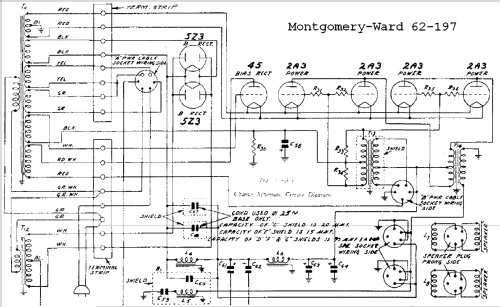

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6K7 6K7 76 6K7 6K7 6B7 76 76 6F7 2A3 2A3 2A3 2A3 45 5Z3 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 12 inch = 30.5 cm

• Power out
• 30 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

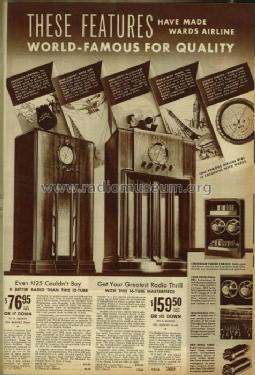

• Model: Airline 62-197 - Montgomery Ward & Co. Wards,

• Shape

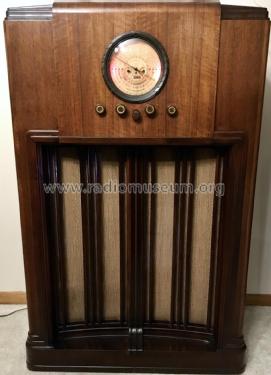

• Console with any shape - in general

• Notes

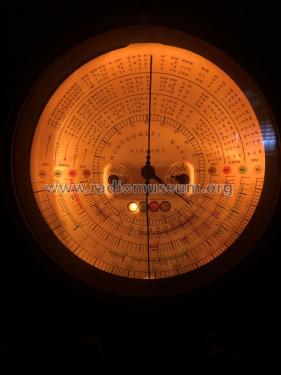

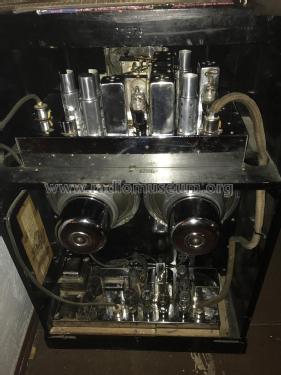

• BC (535-1730 kHz), TROP (1715-5800 kHz), SW1 (5.75-18.3 MHz) and SW2 (17.5-48.0 MHz) bands. Push-pull audio amplifier with 2 x 2A3 tubes in parallel. Two 12 inch speakers. <br />Similar with Wells-Gardner Series 6F.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Pre-War Consoles (Rider's 7-7, 7-8, 7-9, 7-10, 7-11)

• Other Models

• Here you find 2281 models, 1450 with images and 1779 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Montgomery Ward & Co. (Wards, Airline); Chicago, IL
