Airline 350 Order= P462 C 350 Black bakelite

Airline 350 Order= P462 C 350; Montgomery Ward & Co (ID = 53570) Radio

Airline 350 Order= P462 C 350; Montgomery Ward & Co (ID = 595533) Radio
Airline 350 Order= P462 C 350; Montgomery Ward & Co (ID = 2292863) Radio Airline 350 Order= P462 C 350; Montgomery Ward & Co (ID = 1385435) Radio
Airline 350 Order= P462 C 350; Montgomery Ward & Co (ID = 1758984) Radio Airline 350 Order= P462 C 350; Montgomery Ward & Co (ID = 56728) Radio
Use red slider bar for more.
Airline 350 Order= P462 C 350; Montgomery Ward & Co (ID = 2292863) Radio
Montgomery Ward & Co: Airline 350 Order= P462 C 350 [Radio] ID = 2292863 1400x906
Select picture or schematic to display from thumbnails on the right and click for download.
For model Airline 350 Order= P462 C 350 Black bakelite, Montgomery Ward & Co. (Wards, Airline); Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7 6Q7G 6K6G 5W4 or 5Y3G
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Airline 350 Order= P462 C 350 [Black bakelite] - Montgomery Ward & Co. Wards,
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 11.5 x 7.25 x 6.5 inch / 292 x 184 x 165 mm
Notes

BC (535-1720 kHz) band with four pushbutton station selectors.

There are three Airline models with different colours and materials: Airline model 350 is in Black bakelite, Airline model 351 is in Brown bakelite and Airline model 352 is in Ivory plaskon.



External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

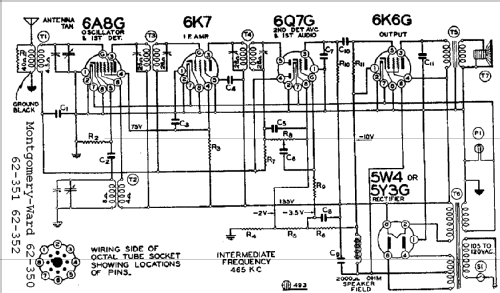

Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Rider's 9-11, 9-41
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 35.)
Literature/Schematics (3) Montgomery Ward Catalogs (Wards, Airline) (Spring & Summer 1938 page 458)
