62-445 "Teledial" ivory plaskon

62-445 'Teledial' ; Montgomery Ward & Co (ID = 589154) Radio
62-445 'Teledial' ; Montgomery Ward & Co (ID = 266576) Radio 62-445 'Teledial' ; Montgomery Ward & Co (ID = 1385407) Radio
62-445 'Teledial' ; Montgomery Ward & Co (ID = 1897618) Radio 62-445 'Teledial' ; Montgomery Ward & Co (ID = 1897619) Radio
62-445 'Teledial' ; Montgomery Ward & Co (ID = 1897620) Radio 62-445 'Teledial' ; Montgomery Ward & Co (ID = 1897621) Radio
Use red slider bar for more.
62-445 'Teledial' ; Montgomery Ward & Co (ID = 266576) Radio
Montgomery Ward & Co: 62-445 "Teledial" [Radio] ID = 266576 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 62-445 'Teledial' ivory plaskon, Montgomery Ward & Co. (Wards, Airline); Chicago, IL:
By courtesy of William Kendrick, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1937/1938 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7G 6Q7G 6F6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 62-445 "Teledial" [ivory plaskon] - Montgomery Ward & Co. Wards,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Notes

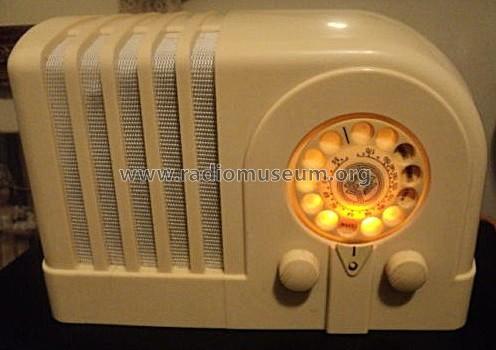

The Montgomery Ward Airline model 62-445 and the variants of them receive BC (535-1720 kHz) band. Arranged like an old telephone there are 10 push buttons for direct tuning. The system is called "Teledial" and each button had labels glued on. The labels show from which region the set was originally - example is "KGO S. Fran'co" and "KPO S. Fran'co" for South West or California.
Specially the ivory plaskon model is often showing stress cracks in the case.
Colours and material: model 475: black bakelite; model 455: brown bakelite; model 445: ivory plaskon.

Here you find more complex Teledial models with a different system like the 1541 and 1291 as console from 1936/37 but also the Teledial 588 or 62-306 as table model from this season. See this article containing Teledial models. Also Teledial models of other brands are covered. In particular the nine 1936/37 Grunow models presented in "Radio Retailing", March 1937, are linked.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Rider's 9-63

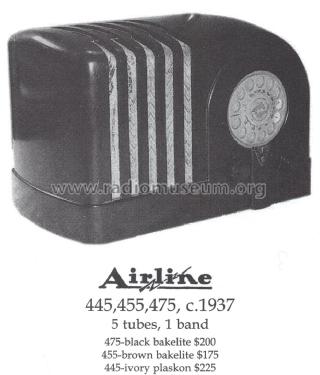

Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 35.)
