• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 48131
    • Brand: Airline or Air-Line

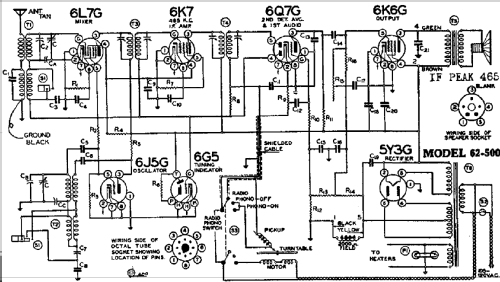

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 62-500 Order= P 462 C 500 - Montgomery Ward & Co. Wards,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 19.375 x 15.25 x 13.875 inch / 492 x 387 x 352 mm
  • Notes
  • BC (535-1720 kHz) and SW (5.5-18.1 MHz) bands.
  • Price in first year of sale
  • 44.95 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
  • Mentioned in
  • Rider's 9-71, 9-72
