Airline 62-751 Order= P162 B 751
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48216
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 6 or 105-125AC Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 0.6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 62-751 Order= P162 B 751 - Montgomery Ward & Co. Wards,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 22 x 38 x 11 inch / 559 x 965 x 279 mm
- Notes
- BC (535-1730 kHz) band with 6 pushbutton station selectors and SW (5.6-18.1 MHz) band. Tuning eye. Vibrator for B+. AC operation with special cable.
- Price in first year of sale
- 43.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Rider's 10-34, 10-36, 10-44
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (4)

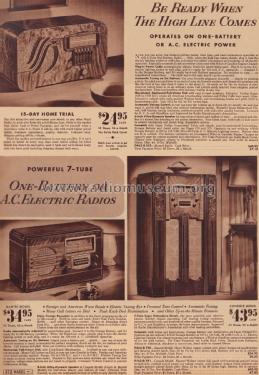

- Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1939, No.130, page 572.)
