Airline 74KR-2706B
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48319
-
- Brand: Airline or Air-Line
SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 3.2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 74KR-2706B - Montgomery Ward & Co. Wards,
- Shape
- Console with any shape - in general
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference

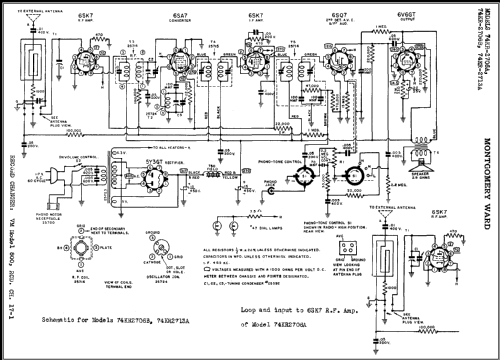

- Rider's Perpetual, Volume 17 = 1948 and before
- Literature/Schematics (4)

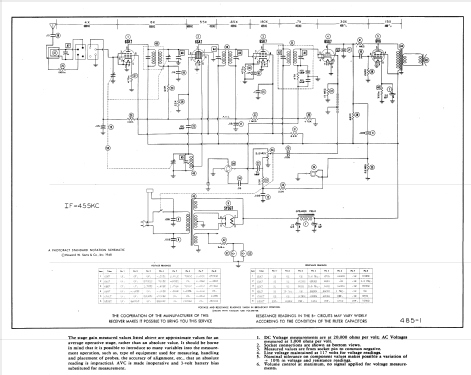

- Photofact Folder, Howard W. SAMS (Set 35, Date 3/48, Folder 485-1)
