Airline 15WG-3050A
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 349990
-
- Brand: Airline or Air-Line

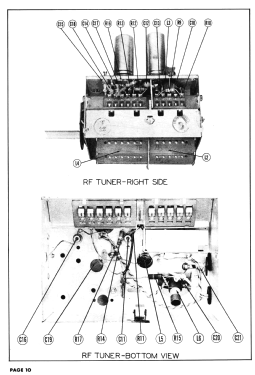

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 6CB6 or 6AG5 6J6 6CB6 6CB6 6CB6 6AL5 12AT7 12AU7 6AU6 6AU6 6AU6 6AL5 6SN7GT 6S4 6AL5 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 12AT7 6BE6 6BA6 6BA6 6AL5 6AV6 6V6GT 5Y3G 17BP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 15WG-3050A - Montgomery Ward & Co. Wards,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Airline model 15WG-3050A is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with a VHF tuner, TV-AM-FM-Phono combination and picture tube 17BP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 145, folder 3, dated 9-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
