62-413 Movie Dial Ch= Series 2DL Order= 162 C 413
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 190177
-
- Brand: Airline or Air-Line
eBay item# 111463456471
- Number of Tubes
- 13
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Loudspeaker
- 2 Loudspeakers / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 62-413 Movie Dial Ch= Series 2DL Order= 162 C 413 - Montgomery Ward & Co. Wards,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 23.5 x 40 x 12.75 inch / 597 x 1016 x 324 mm
- Notes
-

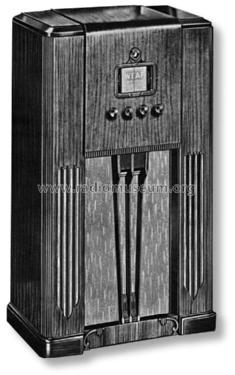

The Airline 62-413 radio is a 13-tube, 3-Band Movie Dial radio that uses Wells-Gardner's Series 2DL chassis. Its push-pull 6L6 output drives two (2) 12-inch electrodynamic speakers.
- Price in first year of sale
- 81.95 $
- Source of data
- Pre-War Consoles
- Literature/Schematics (4)

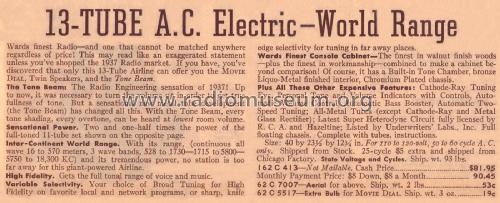

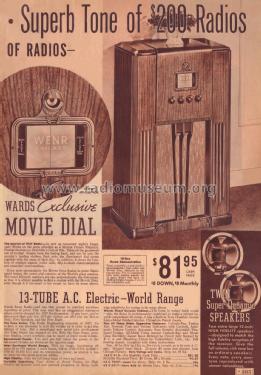

- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1936/37, No.125, page 385.)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
