Airline (unknown model) Ch= 585D

Airline Ch= 585D; Montgomery Ward & Co (ID = 1490405) Radio Airline Ch= 585D; Montgomery Ward & Co (ID = 1490410) Radio
Airline Ch= 585D; Montgomery Ward & Co (ID = 1490408) Radio Airline Ch= 585D; Montgomery Ward & Co (ID = 1490411) Radio

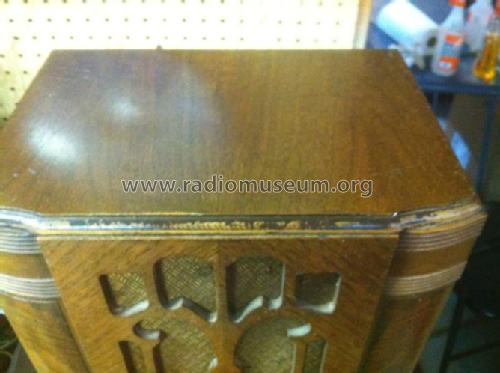

Airline Ch= 585D; Montgomery Ward & Co (ID = 1490407) Radio Airline Ch= 585D; Montgomery Ward & Co (ID = 1490409) Radio
Use red slider bar for more.

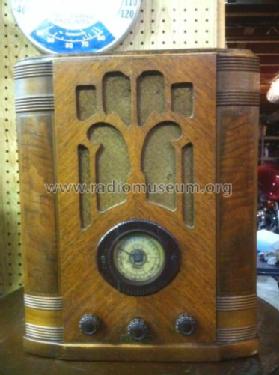

Airline Ch= 585D; Montgomery Ward & Co (ID = 1490405) Radio
Montgomery Ward & Co: Airline Ch= 585D [Radio] ID = 1490405 374x501
Select picture or schematic to display from thumbnails on the right and click for download.
For model Airline (unknown model) Ch= 585D, Montgomery Ward & Co. (Wards, Airline); Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1935 ? perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6F7 6D6 75 42 80
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Airline Ch= 585D - Montgomery Ward & Co. Wards,
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Notes

The model is made by Belmont, but the tubes given here are different than Belmont 585 Series D and might be wrong here.

Model page created by David Martin. See "Data change" for further contributors.
