DV-5 {ДВ-5}

DV-5 {ДВ-5}; MEMZA (ID = 175790) Crystal DV-5 {ДВ-5}; MEMZA (ID = 183206) Crystal

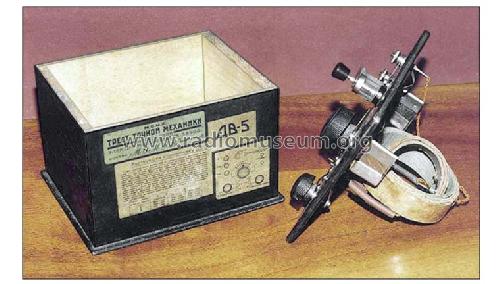

DV-5 {ДВ-5}; MEMZA (ID = 183207) Crystal
Use red slider bar for more.
DV-5 {ДВ-5}; MEMZA (ID = 175790) Crystal
MEMZA: DV-5 {ДВ-5} [Crystal] ID = 175790 400x397
Select picture or schematic to display from thumbnails on the right and click for download.
For model DV-5 {ДВ-5}, MEMZA Electromechanical Works (ex VTU), Moscow:
Thanks for Vitaly Brousnikin, Russia

Country:  Soviet Union
Manufacturer / Brand:  MEMZA Electromechanical Works (ex VTU), Moscow
Year: 1929 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast and LongWave in ONE range.
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: DV-5 {ДВ-5} - MEMZA Electromechanical Works
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes Coverage 300-2000 m. Crystal detector type DS-4 built in.
Source of data -- Collector info (Sammler)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from MEMZA Electromechanical Works (ex VTU), Moscow
Here you find 18 models, 18 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
