ÈČS-3 {ЭЧС-3}

ÈČS-3 {ЭЧС-3}; MEMZA (ID = 178126) Radio

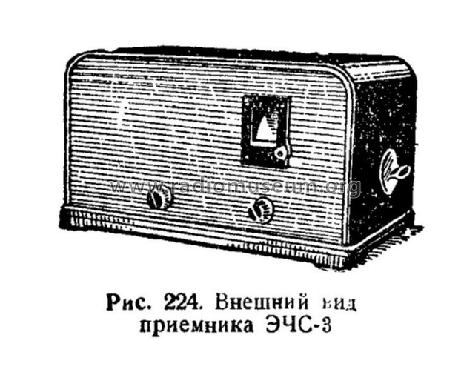

ÈČS-3 {ЭЧС-3}; MEMZA (ID = 178127) Radio
ÈČS-3 {ЭЧС-3}; MEMZA (ID = 178124) Radio ÈČS-3 {ЭЧС-3}; MEMZA (ID = 178125) Radio
Use red slider bar for more.
ÈČS-3 {ЭЧС-3}; MEMZA (ID = 178124) Radio
MEMZA: ÈČS-3 {ЭЧС-3} [Radio] ID = 178124 336x244
Select picture or schematic to display from thumbnails on the right and click for download.
For model ÈČS-3 {ЭЧС-3}, MEMZA Electromechanical Works (ex VTU), Moscow:
Thanks for Valery Charcenko, Russia

Country:  Soviet Union
Manufacturer / Brand:  MEMZA Electromechanical Works (ex VTU), Moscow
Year: 1934–1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: СО-124 СО-124 СО-118 УО-104 ВО-116
Main principle TRF with regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: ÈČS-3 {ЭЧС-3} - MEMZA Electromechanical Works
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes Coverage 200-2000 meters in 4 ranges.
Generally set used separate loudspeaker "Rekord".
Source of data -- Collector info (Sammler)
Mentioned in -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
