PL-2 {ПЛ-2}

PL-2 {ПЛ-2}; MEMZA (ID = 179942) Radio

PL-2 {ПЛ-2}; MEMZA (ID = 179943) Radio
PL-2 {ПЛ-2}; MEMZA (ID = 179941) Radio PL-2 {ПЛ-2}; MEMZA (ID = 1245073) Radio
PL-2 {ПЛ-2}; MEMZA (ID = 179940) Radio PL-2 {ПЛ-2}; MEMZA (ID = 684910) Radio
PL-2 {ПЛ-2}; MEMZA (ID = 1245072) Radio PL-2 {ПЛ-2}; MEMZA (ID = 1245074) Radio
PL-2 {ПЛ-2}; MEMZA (ID = 1245075) Radio
Use red slider bar for more.
PL-2 {ПЛ-2}; MEMZA (ID = 179941) Radio
MEMZA: PL-2 {ПЛ-2} [Radio] ID = 179941 371x339
Select picture or schematic to display from thumbnails on the right and click for download.
For model PL-2 {ПЛ-2}, MEMZA Electromechanical Works (ex VTU), Moscow:
Thanks for Valery Charcenko,Russia

Country:  Soviet Union
Manufacturer / Brand:  MEMZA Electromechanical Works (ex VTU), Moscow
Year: 1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: МИКРО or МДС МИКРО or МДС
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4/8-16:45-80 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: PL-2 {ПЛ-2} - MEMZA Electromechanical Works
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, with any shape - general.
Notes Coverage 270-1800 meters in 4 ranges.
Set may used as simple crystal radio too.
Two tube variants - tube mds - 8-16 V , tube mikro - 45-80 V anode voltage.

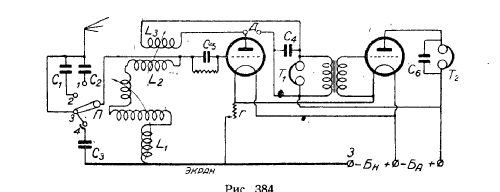

Mentioned in -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from MEMZA Electromechanical Works (ex VTU), Moscow
Here you find 18 models, 18 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
