Moskvič - Москвич V - В variant 3

Moskvič - Москвич V - В; Moscow TEMP Radio (ID = 841487) Radio

Moskvič - Москвич V - В; Moscow TEMP Radio (ID = 841489) Radio
Moskvič - Москвич V - В; Moscow TEMP Radio (ID = 841574) Radio Moskvič - Москвич V - В; Moscow TEMP Radio (ID = 841569) Radio
Moskvič - Москвич V - В; Moscow TEMP Radio (ID = 1835679) Radio
Use red slider bar for more.
Moskvič - Москвич V - В; Moscow TEMP Radio (ID = 841574) Radio

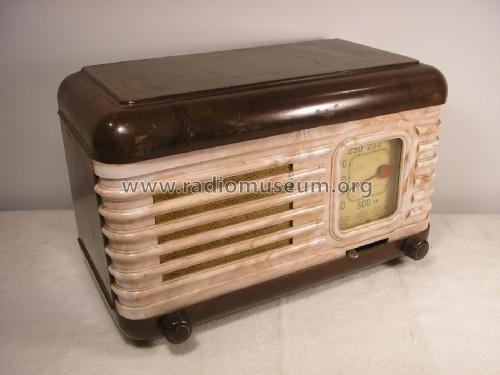

Moscow TEMP Radio: Moskvič - Москвич V - В [Radio] ID = 841574 933x704
Select picture or schematic to display from thumbnails on the right and click for download.
For model Moskvič - Москвич V - В variant 3, Moscow TEMP Radio Works/Plant (ex-Moselektrik); Moskow:
SU_Moskvich B, Moskov TEMP Radio Works, 1949-1957

Country:  Soviet Union
Manufacturer / Brand:  Moscow TEMP Radio Works/Plant (ex-Moselektrik); Moskow
Year: 1950–1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 6А10С or 6А7 6Б8С or 6Б8 6П6С
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Moskvič - Москвич V - В [variant 3] - Moscow TEMP Radio Works/Plant
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 290 x 185 x 140 mm / 11.4 x 7.3 x 5.5 inch
Notes One model name and same case design at all time. In time varied only picture on radio scale glass.
Radio set "Moskvich B" for first was named "Vesna"(BECHA in russian)(see in RMorg). First letter "B" stay in next model name. Model was manufaktured in 5 Russia radio factories, most popular radio. "Moskvich B" produced in: Voronezh Elektrosignal Works, ARZ,Moscow Krasny Oktyabr Works, Sarapoul Radio Works).
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Collectors' prices
Source of data -- Schematic
Mentioned in E.A.Levitin "Radio sets" Moscow 1960

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
