Rubin {Рубин} 714D {714Д}

Rubin {Рубин} 714D {714Д}; Moscow Volna Works, (ID = 1323616) Television Rubin {Рубин} 714D {714Д}; Moscow Volna Works, (ID = 1323618) Television
Use red slider bar for more.

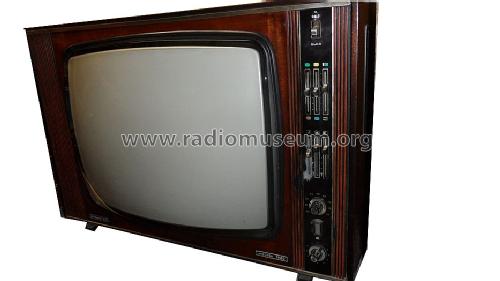

Rubin {Рубин} 714D {714Д}; Moscow Volna Works, (ID = 1323616) Television
Moscow Volna Works,: Rubin {Рубин} 714D {714Д} [Television] ID = 1323616 933x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rubin {Рубин} 714D {714Д}, Moscow Volna Works, Moskow

Country:  Soviet Union
Manufacturer / Brand:  Moscow Volna Works, Moskow
Year: 1980 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 61ЛК3Ц
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Rubin {Рубин} 714D {714Д} - Moscow Volna Works, Moskow
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Sondermodell, aufgelegt anlässlich der Olympischen Sommerspiele 1980 in Moskau.
OIRT, SECAM .

Model page created by Wolfgang Lill. See "Data change" for further contributors.
