For model 10T28M Ch= HS-589, Motorola Inc.; Schaumburg (IL):
Sams Photofact Folders reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc.; Schaumburg (IL)
alternative name

Galvin Mfg. Co. ; Chicago
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6BQ7A 6BA6 6BE6 6BA6 6DA5 6AU6 6AL5 6AV6 6AQ5 6X4
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 10T28M Ch= HS-589 - Motorola Inc.; Schaumburg IL
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Notes

Color is Imperial Mahogany. This Motorola model 10T28 is available in different colors: model 10T28B in Swedish Oak, model 10T28M in Imperial Mahogany and model 10T28MC in California Mahogany.

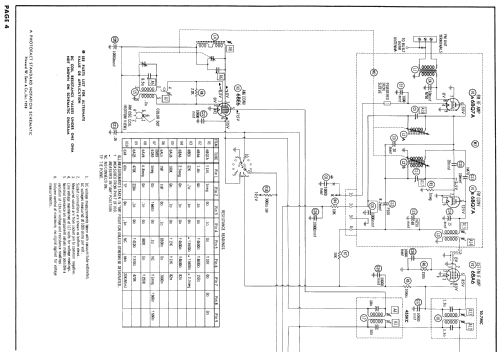

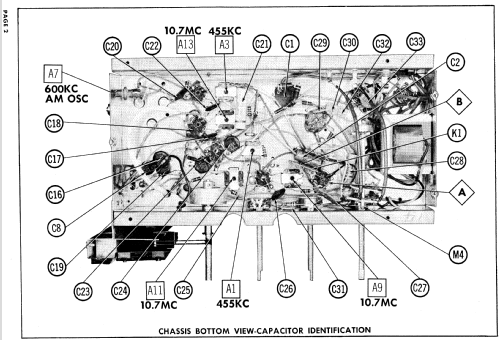

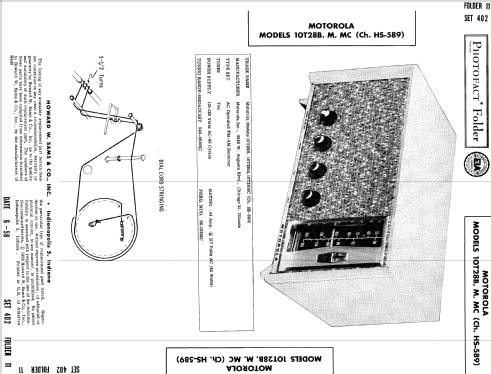

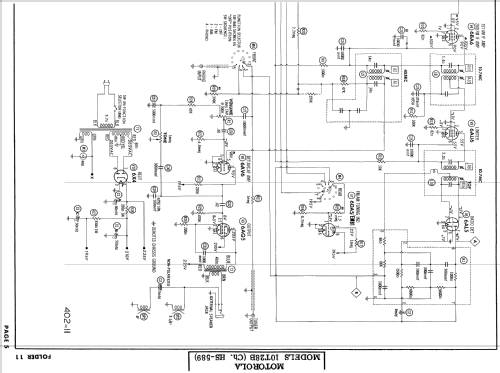

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 6-58, Set 402, Folder 11)
Literature/Schematics (3) Motorola Folder No. 3752, for 1958.

Model page created by Egon Penker. See "Data change" for further contributors.
