• Year
  • 1953
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 245184

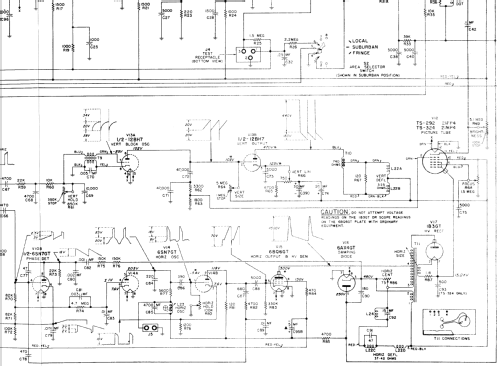

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 27
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 21F3BD Ch= WTS-292, HS-316A - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console with any shape - in general
  • Notes
  • The Motorola 21F3BD is a combination AM/FM radio, phonograph and 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with TV chassis WTS-292, VHF tuner TT-44 and picture tube 21FP4.  Also equipped with AM/FM radio chassis HS-316A and record changer RC-40.  Has toasted mahogany cabinet. Has Qty(2) Selenium Rectifiers and Qty(1) germanium diode detector in TV chassis.

  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)

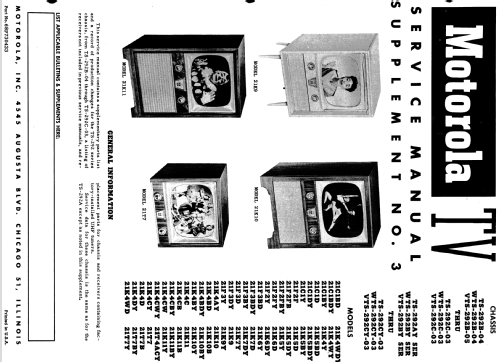

  • - - Manufacturers Literature (Motorola Datasheet 68P730433)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Motorola Datasheet 68P721605)
  • Literature/Schematics (3)
  • - - Manufacturers Literature (Motorola Datasheet 68P722369)
  • Literature/Schematics (4)
  • - - Manufacturers Literature (Motorola Datasheet 68P620339 (For AM/FM Radio))
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
