2F11B-1 Ch= HS-666
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1959
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 164937
Photofact Folder, Howard W. SAMS

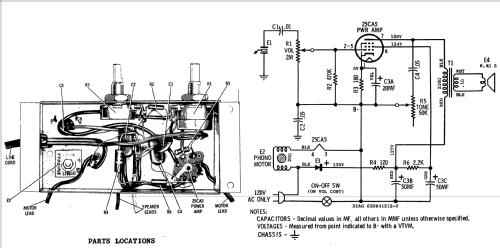

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 25CA5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: 2F11B-1 Ch= HS-666 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- The Motorola Model 2F11B-1 is an AC operated 1 Tube Phono Amplifier with 4 Speed Manual Record Changer. Color = Blue and White. This model is similar to model 2F11B except has a different motor assembly and motor board.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-59, Set 448, Folder 11)
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
