25CA5

Information - Help
ID = 3885



Tube type:  Beam Power Tube   Power/Output
Identical to 25CA5
Similar Tubes
Heater different:
  17CA5

Base Miniatur-7-Pin-Base B7G, USA 1940
Filament Vf 25 Volts / If 0.3 Ampere / Indirect
Tube prices 1 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973

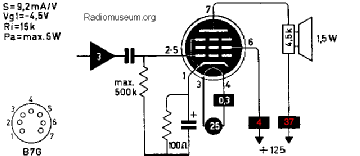

25CA5: corrected version
Roland Langfeld

mi44_g_10.gif 25CA5: RTT Schwandt
Günther Stabe † 19.8.20


Just Qvigstad
Usage in Models 2= 1955? ; 3= 1955 ; 3= 1956? ; 5= 1956 ; 7= 1957? ; 13= 1957 ; 1= 1958 ; 6= 1959

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):40


You reach this tube or valve page from a search after clicking the "tubes" tab or by clicking a tube on a radio model page. You will find thousands of tubes or valves with interesting links. You even can look up radio models with a certain tube line up. [rmxtube-en]
