• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 72154

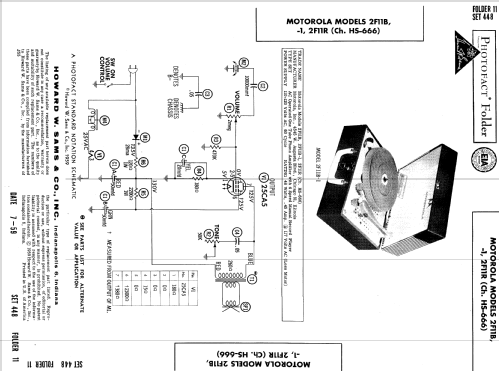

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 25CA5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• from Radiomuseum.org
• Model: 2F11B Ch= HS-666 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes
• The Motorola Model 2F11B is an AC operated 1 Tube Phono Amplifier with 4 Speed Manual Record Changer. Color = Blue and White.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 7-59, Set 448, Folder 11)
