508 ; Motorola Inc.; (ID = 1471159) Car Radio
Motorola Inc.;: 508 [Car Radio] ID = 1471159 933x650
Select picture or schematic to display from thumbnails on the right and click for download.

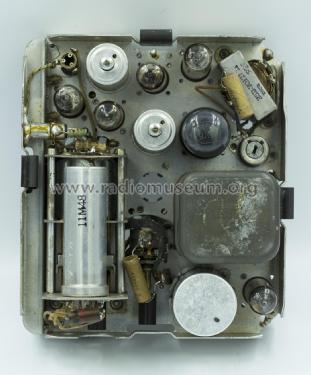

For model 508, Motorola Inc.; Schaumburg (IL):

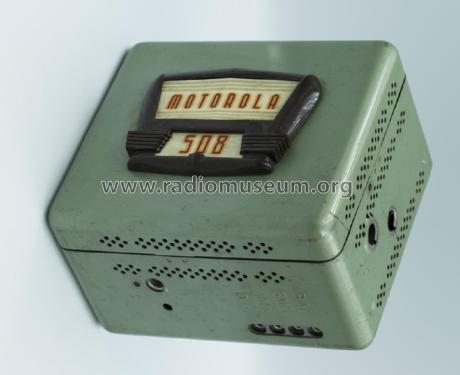

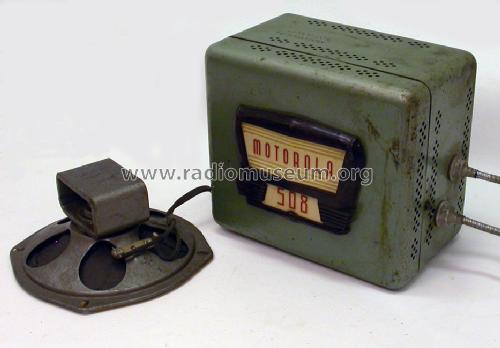

Case of a Motorola Model 508 electronics assembly with external speaker.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc.; Schaumburg (IL)
alternative name

Galvin Mfg. Co. ; Chicago
Year: 1948 ?? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6BA6 6BE6 6BA6 6AT6 6V6GT 6X4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 508 - Motorola Inc.; Schaumburg IL
Notes Vibrator for +B.
External source of data Ernst Erb

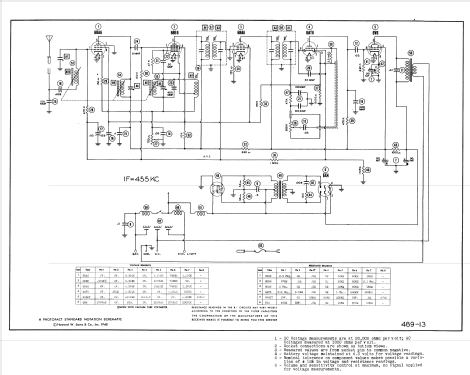

Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before

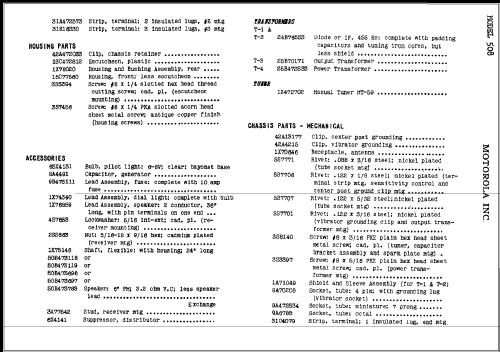

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 39, Folder 13)
