For model 56T1 Ch=HS-483, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):
eBay seller: dts-bay (USA). #6609769306

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: 2N172 2N146 2N146 R35_TI TI354
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out
from Radiomuseum.org Model: 56T1 Ch=HS-483 - Motorola Inc. ex Galvin Mfg.Co
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.5 x 4 x 1.5 inch / 140 x 102 x 38 mm
Notes

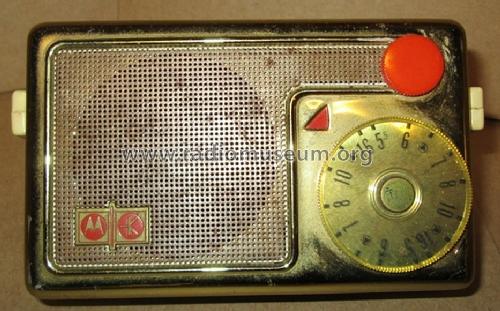

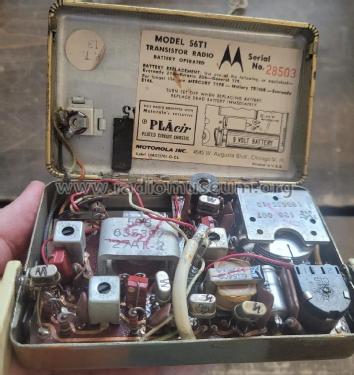

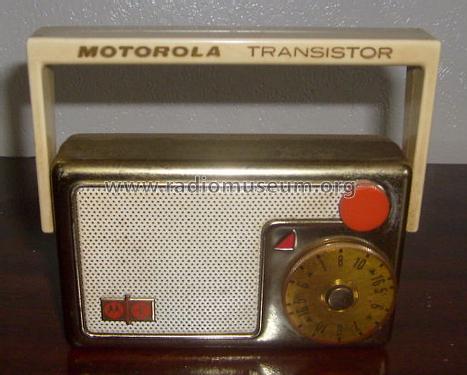

The model 56T1 is Motorola's first transistor portable - with the variants 56T1A and 56T1B. They have a metal case, but the handle is made in plastic to serve as antenna. Pull the volume control knob from front of the radio for chassis removal. There is a tuning knob retaining screw. After the tuning knob is removed the chassis mounting screw is visible.

For the differences among the 3 chassis see model 56T1B.

Collectors' prices
External source of data Aldo Andreani, Italy

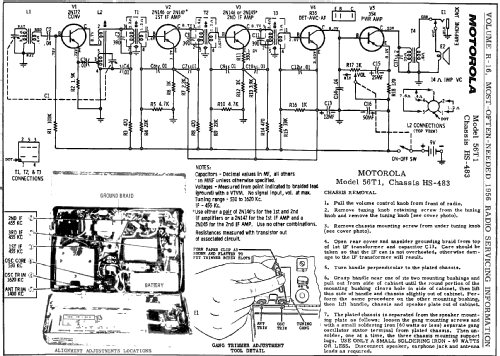

Circuit diagram reference Beitman Radio Diagrams Vol. 16, 1956
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n. 147 (January-February 2019) pages 28-31)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 339 Folder 12 dated 12-56)

Model page created by Egon Penker. See "Data change" for further contributors.
