5K11M Ch= HS-673, A, B, C, C-1, D
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1959
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 72160
Sams Photofact Folders
Picture from Motorola datasheet

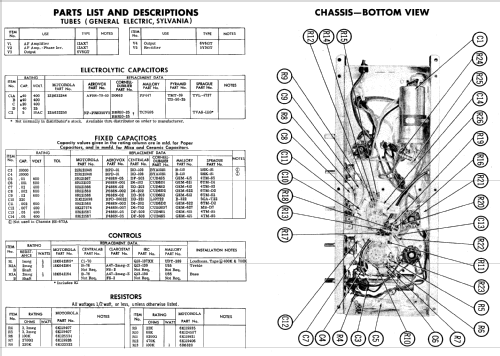

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 5K11M Ch= HS-673, A, B, C, C-1, D - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Motorola Model 5K11M is an AC operated 5 Tube mono Phono Amplifier with 4 Speed Automatic Record Changer. Cabinet is Mahogany. This model has a 12" PM speaker, a 6" PM speaker and a 4" PM speaker. Uses Record Changer VM19RC. Also has provisions for conversion to stereo operation with use of a conversion kit.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 19, 1959
- Literature/Schematics (1)

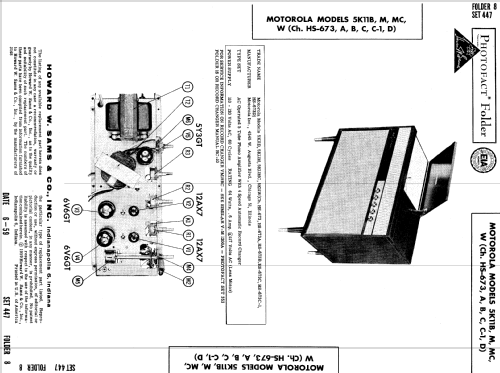

- Photofact Folder, Howard W. SAMS (Date 6-59, Set 447, Folder 8)
