• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 72162

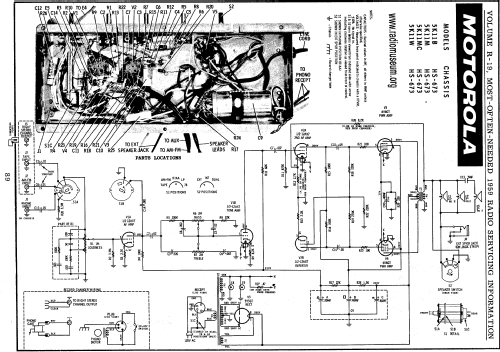

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AX7 12AX7 6V6GT 6V6GT 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5K11W Ch= HS-673, A, B, C, C-1, D - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• The Motorola Model 5K11W is an AC operated 5 Tube mono Phono Amplifier with 4 Speed Automatic Record Changer. Cabinet is Walnut. This model has a 12" PM speaker, a 6" PM speaker and a 4" PM speaker. Uses Record Changer VM19RC. Also has provisions for conversion to stereo operation with use of a conversion kit.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 6-59, Set 447, Folder 8)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
