• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 49116

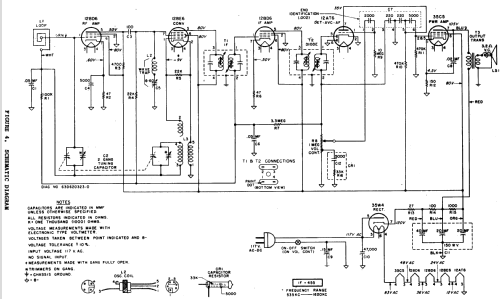

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BD6 12BE6 12BD6 12AT6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

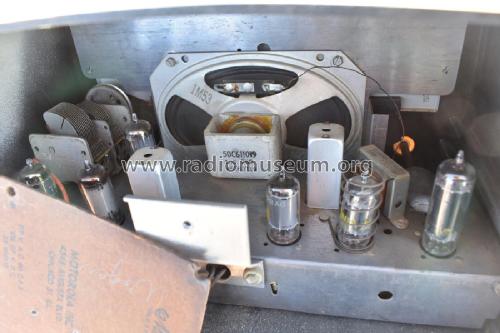

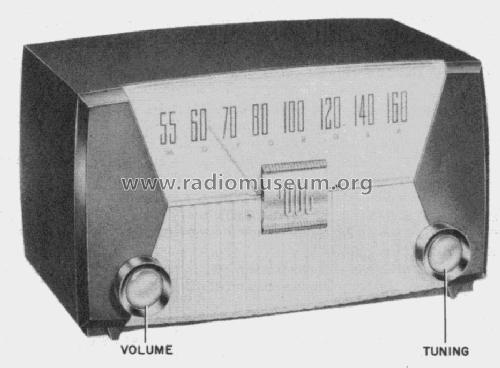

• Model: 62X12U Ch= HS-314 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 12.75 x 7.0625 x 7.25 inch / 324 x 179 x 184 mm

• Notes

• Color= Ivory. This Motorola model 62X with the Chassis HS-314 is available in different colors: model 62X11U in Walnut, model 62X12U in Ivory and model 62X13U in Forest Green.

• Price in first year of sale
• 18.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

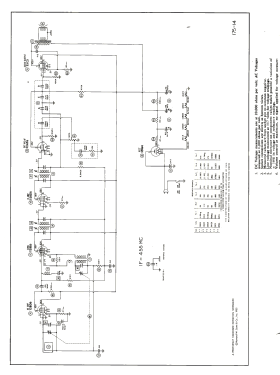

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 12, 1952

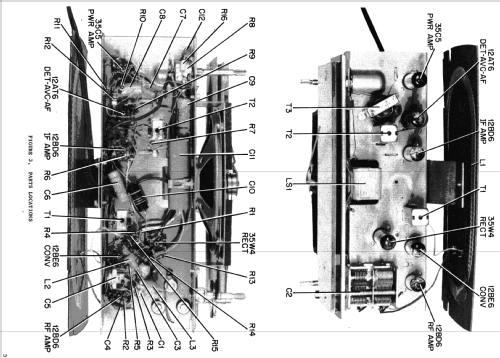

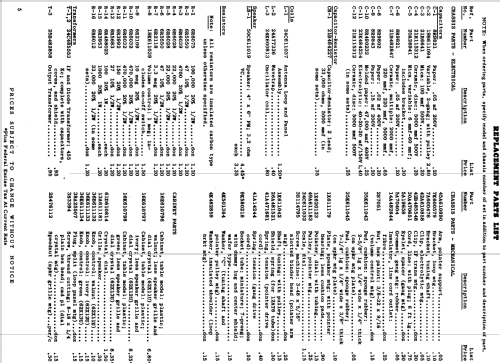

• Literature/Schematics (1)
• Rider's Perpetual, Volume 23 (last) = covering up to 1954

• Literature/Schematics (3)

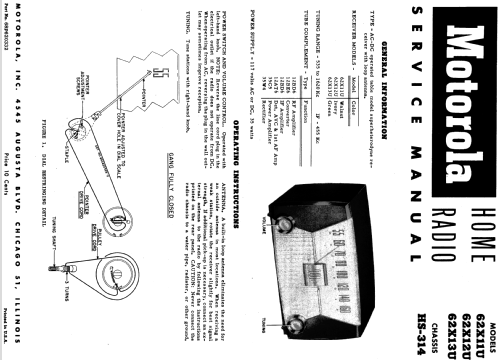

• Motorola Folder No. 3201 for 1952.
