• Year
  • 1956 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 82787

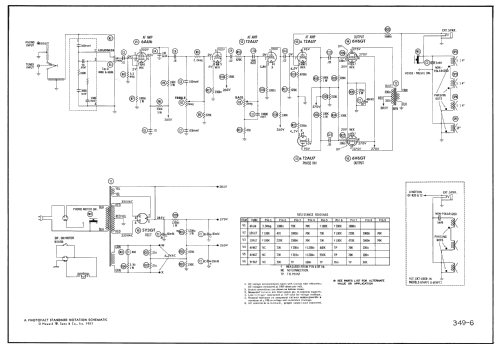

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • from Radiomuseum.org
  • Model: 67HFK2 Ch= HS-544 - Motorola Inc. ex Galvin Mfg.Co
  • Notes
  • Use a 4 speed automatic record changer. Push-pull output stage; color=swedish oak.

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 17, 1957
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
