Motorola Inc. ex: 72C [Radio] ID = 1423148 635x1400

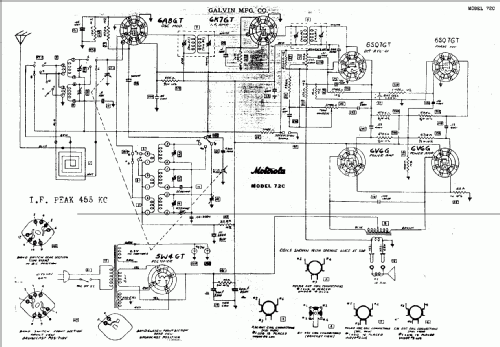

Select picture or schematic to display from thumbnails on the right and click for download.
For model 72C, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):
Scanned from the Motorola Folder H-201, for 1941.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6A8GT 6K7GT 6SQ7GT 6SQ7GT 6V6GT 6V6GT 5W4GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out 8 W (unknown quality)
from Radiomuseum.org Model: 72C - Motorola Inc. ex Galvin Mfg.Co
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 27 x 40 x 13 inch / 686 x 1016 x 330 mm
Notes

Loop Antenna. Tuning Range 540 to 1720 kc, 1725 to 5700 kc and 5700 to 18,000 kc.

External source of data Ernst Erb
Source of data Pre-War Consoles
Circuit diagram reference Rider's Perpetual, Volume 14 = 1944 = before 1943
Literature/Schematics (3) Motorola Folder H-101A for 1940, Folder H-201 for 1941.
