76F31 Ch= HS-98

76F31 Ch= HS-98; Motorola Inc. ex (ID = 349009) Radio

76F31 Ch= HS-98; Motorola Inc. ex (ID = 349010) Radio

76F31 Ch= HS-98; Motorola Inc. ex (ID = 349011) Radio

76F31 Ch= HS-98; Motorola Inc. ex (ID = 349012) Radio

76F31 Ch= HS-98; Motorola Inc. ex (ID = 349013) Radio

76F31 Ch= HS-98; Motorola Inc. ex (ID = 349014) Radio

76F31 Ch= HS-98; Motorola Inc. ex (ID = 349015) Radio

76F31 Ch= HS-98; Motorola Inc. ex (ID = 349016) Radio

76F31 Ch= HS-98; Motorola Inc. ex (ID = 349020) Radio

76F31 Ch= HS-98; Motorola Inc. ex (ID = 349021) Radio
76F31 Ch= HS-98; Motorola Inc. ex (ID = 349008) Radio
Use red slider bar for more.
76F31 Ch= HS-98; Motorola Inc. ex (ID = 349008) Radio
Motorola Inc. ex: 76F31 Ch= HS-98 [Radio] ID = 349008 568x662
Select picture or schematic to display from thumbnails on the right and click for download.
For model 76F31 Ch= HS-98, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 7F8 6SG7 7Q7 7W7 6S8GT 6V6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455/4300 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 76F31 Ch= HS-98 - Motorola Inc. ex Galvin Mfg.Co
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Mentioned in Antique Radios, Johnson 1986

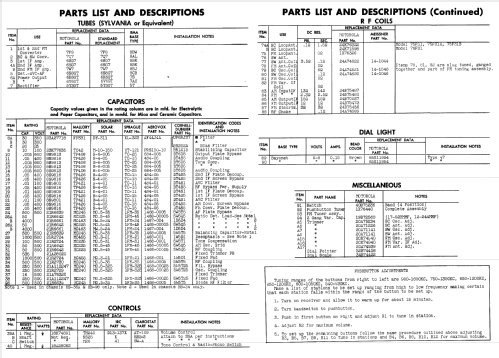

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 29, Date 12/47, Folder 4719-18)
