For model A19W Ch= HS-825, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1961 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12BA6 12BE6 12BA6 12AV6 12AV6 35C5 35C5
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / Either AC: 60 cycles, 120V or DC: 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: A19W Ch= HS-825 - Motorola Inc. ex Galvin Mfg.Co
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

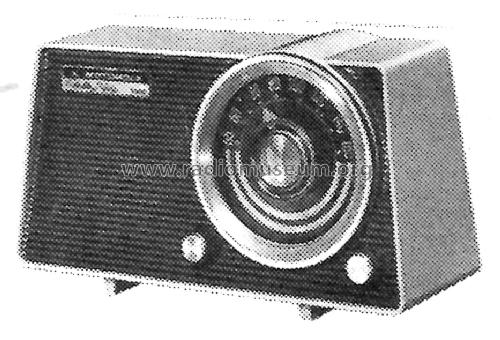

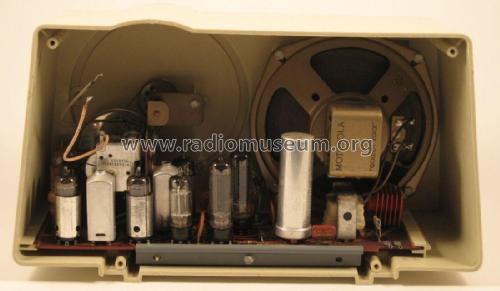

The Motorola A19W is an AC/DC operated 7 Tube AM Receiver with Selenium Rectifier and Push-Pull output stage. AM Band Tuning Range: 535 to 1620KHz.

The following models use the same schematic and cabinet but have different cabinet colors:

Model Cabinet Colors
A19S Beige/Brown
A19W White/Maple Sugar

The Motorola service manual has service information for the following models: A15, A16, A17, A18, A19 series and the C15, C16, C17, C18, C19, C20 series. The A series are radio's without clocks, while the C series are radio's with clocks.

WARNING:  When servicing this radio, an isolation transformer should be used between the power line and the radio.

Collectors' prices

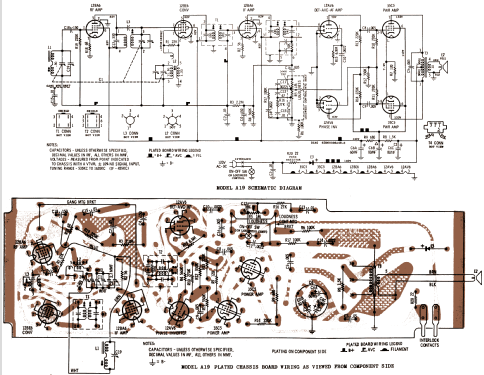

Literature/Schematics (1) - - Manufacturers Literature (Motorola Datasheet 68P60011A71 Dated 6-61)

Model page created by John Kusching. See "Data change" for further contributors.
