505 Ch= AS-14; Motorola Inc.; (ID = 436066) Car Radio
Motorola Inc.;: 505 Ch= AS-14 [Car Radio] ID = 436066 436x366

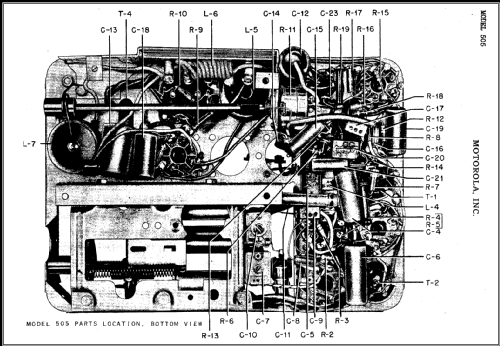

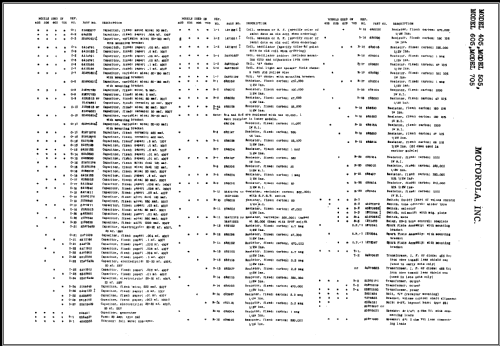

Select picture or schematic to display from thumbnails on the right and click for download.
For model 505 Ch= AS-14, Motorola Inc.; Schaumburg (IL):
Riders Vol.16

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc.; Schaumburg (IL)
alternative name

Galvin Mfg. Co. ; Chicago
Year: 1945 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6SK7GT 6SA7GT 6SK7GT 6SQ7GT 6V6GT 6X5GT or 0Z4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: 505 Ch= AS-14 - Motorola Inc.; Schaumburg IL
Material Metal case
Shape Chassis only or for «building in»
Notes Vibrator for +B.
See also Rider's Perpetual, Volume 16.
External source of data E. Erb 3-907007-36-0
Source of data Rider's Perpetual, Volume 15 = 1947 and before
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Folder 464-37 date 9-46)
