• Year
  • 1964 ?
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 92791

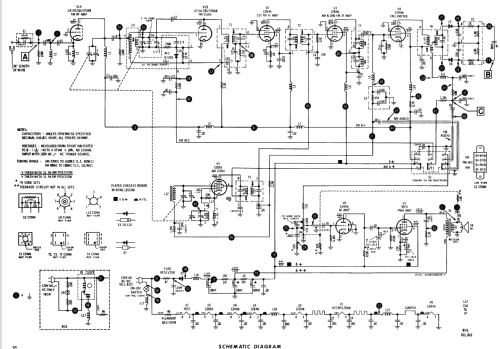

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / 110 to 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: B11W Ch= HS-4134 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • The Motorola B11W is an AC/DC operated 7 tube AM/FM receiver. AM Tuning Range: 535 to 1620 kHz. FM Tuning range: 88 to 108MHz.  Has Qty(1) PM 5" speaker. Has built-in ferrite antenna for AM and a 36" wire for the FM antenna. Uses silicon diode for rectifier in power supply.  Cabinet color is white.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Back Color Cabinet Front Color
    B11E Black Black
    B11S Sand Brown
    B11W White White



  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 25, 1965

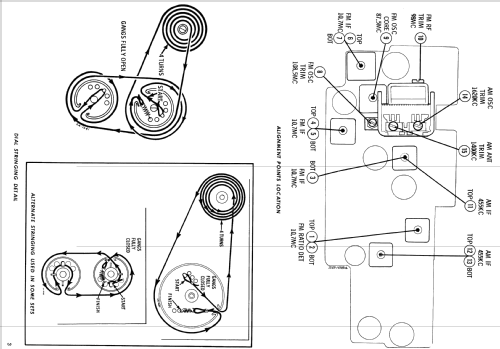

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Motorola Datasheet 68P60084A25 Dated 4-64)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
