BK-6 Ch= AS-22
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1946 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 49316
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 7.4 inch = 18.8 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: BK-6 Ch= AS-22 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Chassis only or for «building in»
- Notes
- Vibrator for +B. Automatic tuner model ST-56.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Riders 19-23 to 19-32.
- Literature/Schematics (1)

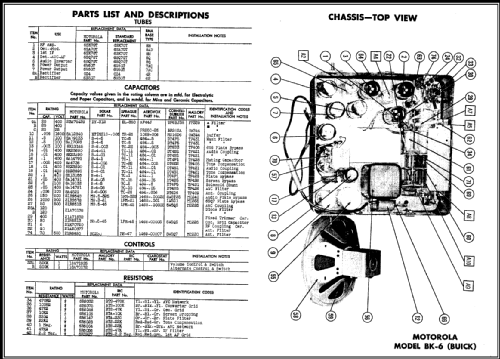

- Photofact Folder, Howard W. SAMS (Set 10, Folder 4610-23)
- Other Models
-
Here you find 4509 models, 2955 with images and 4003 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
