BK8X Buick Ch= 8A
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1949
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 49318
Beitman
Rider
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 3 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: BK8X Buick Ch= 8A - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Chassis only or for «building in»
- Notes
- Vibrator G-1 for +B.
- External source of data
- Ernst Erb

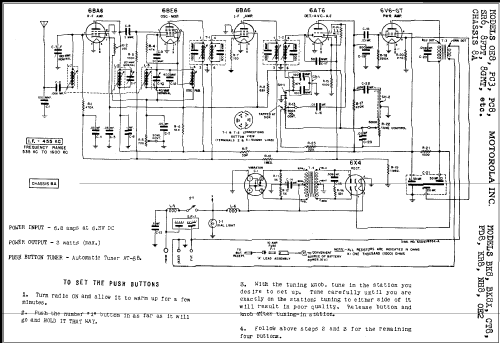

- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Mentioned in
- Photofact Folder, Howard W. SAMS (Vol.5/48 4816-16 Set 46 Folder 16)
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 09, 1949
