• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1959

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 154662

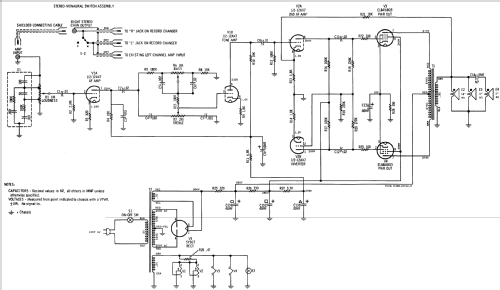

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AX7 12AX7 EL84 EL84 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: HK-33CW Ch= HS-701 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• The Motorola Model HK-33CW is an AC Operated 5 Tube Audio Amplifier and speaker system to be used as the right channel when converting Motorola models 5K11, 5K21, 5K23, 6H26, 6H27, 6K13, 6K22, 10KT12, 13KT15 or 15KT24 to stereophonic operation. This model also included a stereophonic cartridge and all parts necessary to make a complete stereo conversion of above mentioned models. Cabinet is Cherry Wood. This model has Qty(1) 12" PM speaker and Qty(2) 5" PM speakers.

• Literature/Schematics (1)

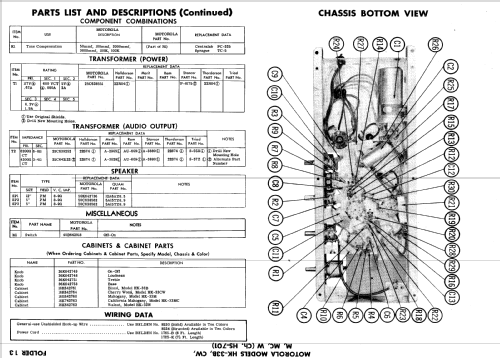

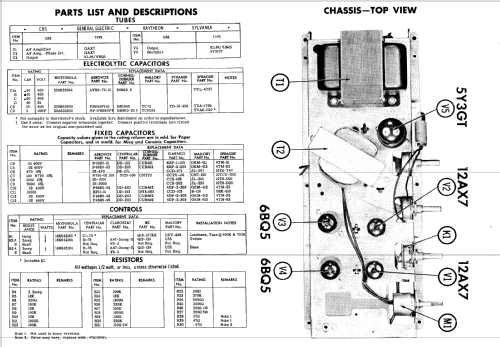

• Photofact Folder, Howard W. SAMS (Date 11-59, Set 464, Folder 13)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
