MoPar 621 Dodge D62, D63

MoPar 621 Dodge D62, D63; Motorola Inc. ex (ID = 125399) Car Radio

MoPar 621 Dodge D62, D63; Motorola Inc. ex (ID = 1748433) Car Radio

MoPar 621 Dodge D62, D63; Motorola Inc. ex (ID = 1748434) Car Radio

MoPar 621 Dodge D62, D63; Motorola Inc. ex (ID = 1748435) Car Radio

MoPar 621 Dodge D62, D63; Motorola Inc. ex (ID = 1748436) Car Radio

MoPar 621 Dodge D62, D63; Motorola Inc. ex (ID = 1748437) Car Radio
MoPar 621 Dodge D62, D63; Motorola Inc. ex (ID = 1748432) Car Radio
Use red slider bar for more.
MoPar 621 Dodge D62, D63; Motorola Inc. ex (ID = 1748432) Car Radio
Motorola Inc. ex: MoPar 621 Dodge D62, D63 [Car Radio] ID = 1748432 850x565
Select picture or schematic to display from thumbnails on the right and click for download.
For model MoPar 621 Dodge D62, D63, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):

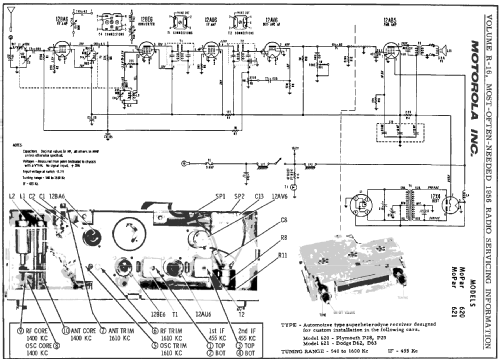

Picture from service manual

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1955 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 12BA6 12BE6 12AU6 12AV6 12AB5 12X4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: MoPar 621 Dodge D62, D63 - Motorola Inc. ex Galvin Mfg.Co
Material Metal case
Shape Chassis only or for «building in»
Notes Vibrator for +B

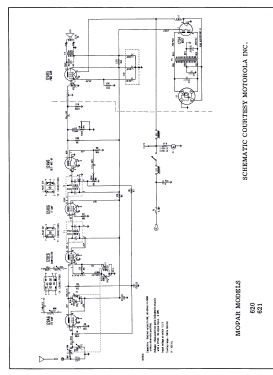

Circuit diagram reference Beitman Radio Diagrams Vol. 16, 1956
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 350 Folder 10 date 3 - 57)

Model page created by Egon Penker. See "Data change" for further contributors.
