12X4

Information - Help
ID = 5455

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Full-Wave Vacuum Rectifier
Identical to 12X4
Similar Tubes
Heater different:
  6X4
Other base:
  14Y4
First Source (s)
09.Jul.1952 : Electron Tube Registration List
Predecessor Tubes 12Z5   6Z5/12Z5   14Y4   12Z3

Base Miniatur-7-Pin-Base B7G, USA 1940
Filament Vf 12.6 Volts / If 0.3 Ampere / Indirect / Parallel / series AC/DC
Tube prices 3 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973

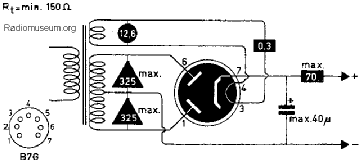

  12X4: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

12X4
Jacob Roschy


12X4: 6X4 GE Data Sheet 5-58
Vitor Oliveira


12X4: RCA Tube Manual
Peter Hoddow


from Just Qvigstad

Usage in Models 4= 1952? ; 1= 1953? ; 6= 1954? ; 1= 1954 ; 26= 1955? ; 4= 1955 ; 2= 1956?? ; 15= 1956? ; 11= 1956 ; 12= 1957? ; 29= 1957 ; 4= 1958? ; 17= 1958 ; 1= 1959?? ; 20= 1959? ; 10= 1959 ; 2= 1960?? ; 3= 1960? ; 1= 1960 ; 1= 1961? ; 1= 1961 ; 3= 1962? ; 2= 1962 ; 1= 1963? ; 1= 1963 ; 1= 1964? ; 1= 1966??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):180
