• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1957 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 271936

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 12AV6 12AU7 12AB5 12AB5 12X4

• Main principle
• Superhet with RF-stage; ZF/IF 262 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s). / Ø 7 inch = 17.8 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: MoPar 916HR - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Chassis only or for «building in»

• Notes

• Tunig Range Broadcast 520 - 1610kHz.
  Vibrator for +B; Pushbuttons, Motordrive.

• Mentioned in

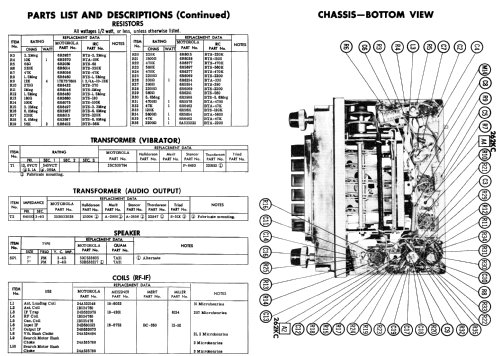

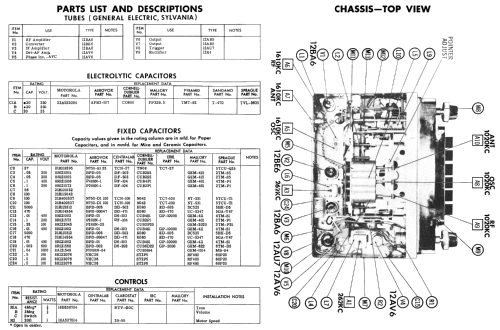

• Photofact Folder, Howard W. SAMS (Set 352, Folder 9, Date 3-57)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
