• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1951/1952

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 49382

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AV6 6AS5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

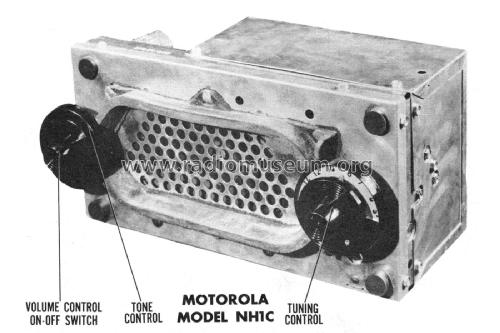

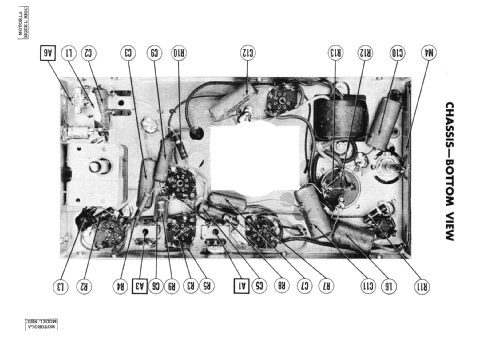

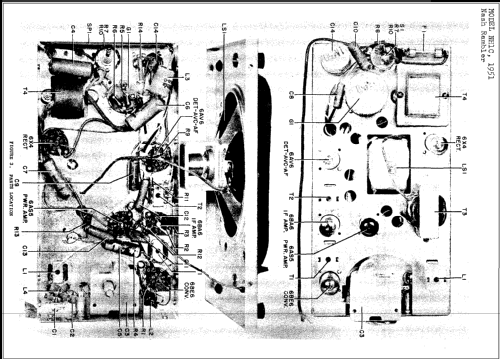

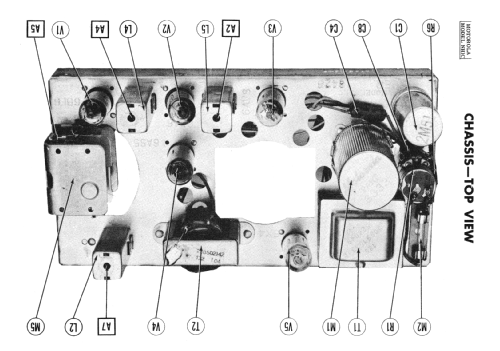

• Model: NH1C 1951 Nash Rambler - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Chassis only or for «building in»

• Notes

• Vibrator for +B

• External source of data
• Ernst Erb

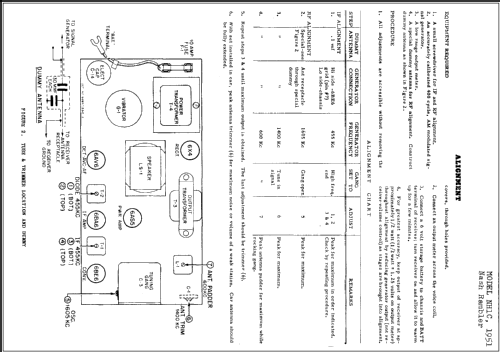

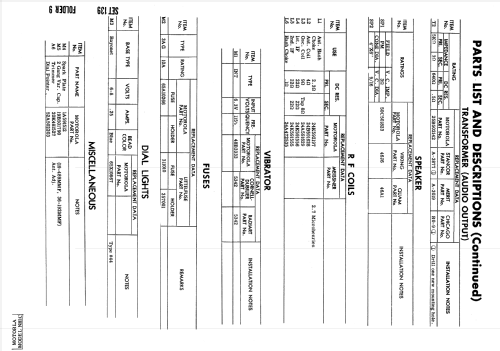

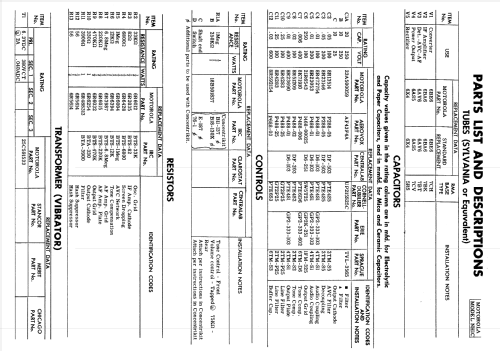

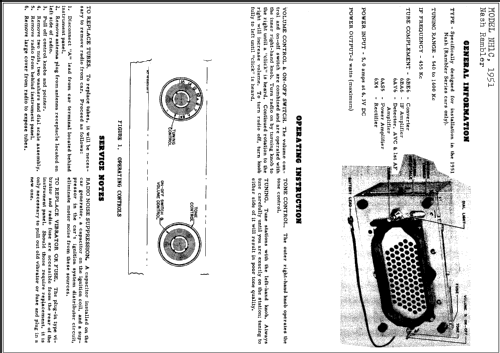

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 11, 1951

• Literature/Schematics (1)
• Rider's Perpetual, Volume 22 = covering 1951

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Date 7-1951, Set 139, Folder 9)
