• Year
  • 1959
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 152744

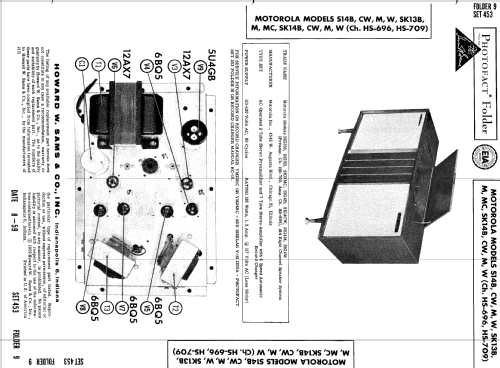

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 7 or more Loudspeakers
  • Power out
  • 10 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SK14W Ch= HS-696 + HS-709 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The Motorola Model SK14W is an AC operated 9 Tube stereo Phono Amplifier with 4 Speed Automatic Record Changer. Uses pre-amp chassis HS-709 and power amp chassis HS-696. Cabinet is Walnut. This model has Qty(1) 15" PM speaker, Qty(1) 12" PM speaker, Qty(2) 5.25" PM speakers and Qty(2) 5" PM speakers. Uses Record Changer VM23RC or VM24RC. Two cabinets make up this model, with the second cabinet holding the right channel speakers (S14W).
  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
