VK106B Ch= TS-9A
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- 1949 ?
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Valves / Tubes
- 6AG5 6J6 6BA6 6BA6 6BA6 6AG5 6AL5 12AU7 6AU6 6AU6 6T8 6V6GT 6SN7GT 6SN7GT 6SN7GT 6BG6G 5V4G 1B3GT 5U4G 5Y3GT 10BP4
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.25 inch = 18.4 cm
- Wooden case
- from Radiomuseum.org
- Model: VK106B Ch= TS-9A - Motorola Inc. ex Galvin Mfg.Co
- Console, Lowboy (legs < 50 %).
10" round CRT b/w TV with US standard VHF tuner channles 2 through 13.

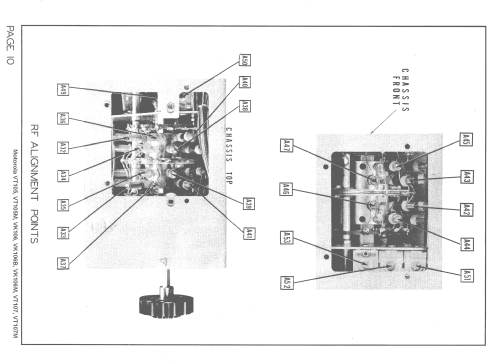

SAMS Photofact Set 67 Folder 13 lists 4 different chassis for this model (TS-9, TS-9A, TS-9B, TS-9C).
Chassis TS-9A has 20 tubes plus CRT and is the same as TS-9 except for a conventional power supply circuit having 5Y3GT and 5U4G tubes. The power transformer also differs from TS-9.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 67, Folder 13, Date 08/49)
- Literature/Schematics (1)
- Rider's TV, 2-27 2-28
- Model page created by Mark Hippenstiel. See "Data change" for further contributors.
