For model X14E Ch= HS-795, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2S52 2S53 2S49 2S54 2S56 2S56
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out
from Radiomuseum.org Model: X14E Ch= HS-795 - Motorola Inc. ex Galvin Mfg.Co
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 3 x 4.25 x 1.25 inch / 76 x 108 x 32 mm
Notes The Motorola model X14E is a 6 transistor and 1 diode portable AM receiver. AM band tuning range: 532-1620KHz. An earphone jack is located on side of radio which disconnects the speaker for private listening. Uses one 9V battery. Cabinet color = Black. Sams photofact set 509 folder 14 date 12-60 features the Motorola models X14B, X14E, X14R and X14W as the same schematic.
Circuit diagram reference Beitman Radio Diagrams Vol. 21, 1961

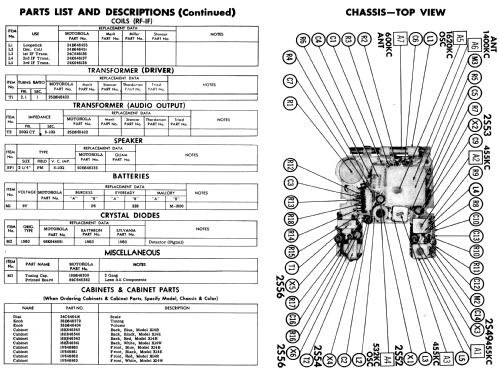

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 509 folder 14 date 12-60)
Literature/Schematics (2) - - Manufacturers Literature

Model page created by Egon Penker. See "Data change" for further contributors.
