MAS15

MAS15; Mullard Wireless, (ID = 1226096) Radio
Use red slider bar for more.
MAS15; Mullard Wireless, (ID = 1226096) Radio
Mullard Wireless,: MAS15 [Radio] ID = 1226096 800x750
Select picture or schematic to display from thumbnails on the right and click for download.
For model MAS15, Mullard Wireless, London (see also Mullard Radio Valve):

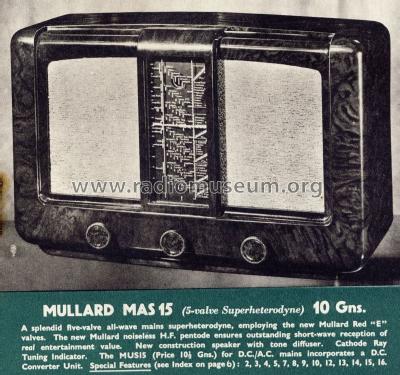

Original Prospekt "MULLARD 1938-9 Models"

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1939 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EF8 EK2 EF9 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 470 kHz; 1 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105-245 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: MAS15 - Mullard Wireless, London see
Material Bakelite case
Notes The AC/DC version of this set is MUS15. This set is a Mullard version of Philips 650A. The Philips schematic can be used.
Literature/Schematics (1) Mullard service manuel, & Trader Index & sheet 378.

Model page created by Keith Staines. See "Data change" for further contributors.
