MAS305

MAS305; Mullard Wireless, (ID = 18695) Radio

MAS305; Mullard Wireless, (ID = 18696) Radio

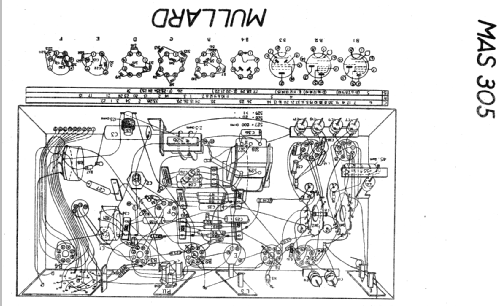

MAS305; Mullard Wireless, (ID = 18697) Radio
MAS305; Mullard Wireless, (ID = 2064) Radio MAS305; Mullard Wireless, (ID = 965138) Radio
Use red slider bar for more.
MAS305; Mullard Wireless, (ID = 2064) Radio
Mullard Wireless,: MAS305 [Radio] ID = 2064 679x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model MAS305, Mullard Wireless, London (see also Mullard Radio Valve)

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ31
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: MAS305 - Mullard Wireless, London see
Material Bakelite case
Dimensions (WHD) 430 x 300 x 210 mm / 16.9 x 11.8 x 8.3 inch
Notes Pultskala
Price in first year of sale 445.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Mullard Wireless, London (see also Mullard Radio Valve)
Here you find 139 models, 107 with images and 57 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
