MAS7

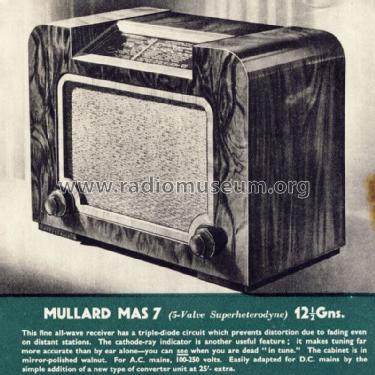

MAS7; Mullard Wireless, (ID = 1470429) Radio MAS7; Mullard Wireless, (ID = 1226091) Radio
MAS7; Mullard Wireless, (ID = 1470430) Radio
Use red slider bar for more.
MAS7; Mullard Wireless, (ID = 1470429) Radio
Mullard Wireless,: MAS7 [Radio] ID = 1470429 933x686
Select picture or schematic to display from thumbnails on the right and click for download.
For model MAS7, Mullard Wireless, London (see also Mullard Radio Valve)

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: FC4 VP4B TDD4 Pen4DD 1821
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: MAS7 - Mullard Wireless, London see
Notes The AC/DC version of this set is MUS7. This set is a Mullard version of the Philips 747A. The Philips schematic can be used.
Literature/Schematics (1) Trader Index & sheet 601

Model page created by Keith Staines. See "Data change" for further contributors.



All listed radios etc. from Mullard Wireless, London (see also Mullard Radio Valve)
Here you find 139 models, 107 with images and 57 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
