• Country
• Great Britain (UK)

• Manufacturer / Brand
• Mullard Wireless, London (see also Mullard Radio Valve)

• Year
• 1954 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 279582

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EF41 EBC41 EBL21 EM34 AZ31

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch

• Material
• Bakelite case

• from Radiomuseum.org

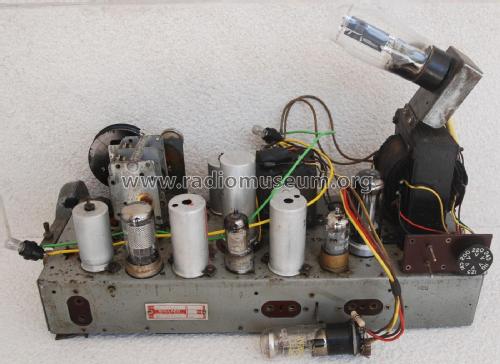

• Model: MAS 276/15 - Mullard Wireless, London see

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 470 x 320 x 240 mm / 18.5 x 12.6 x 9.4 inch

• Net weight (2.2 lb = 1 kg)
• 9.9 kg / 21 lb 12.9 oz (21.806 lb)

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
