MBV-248

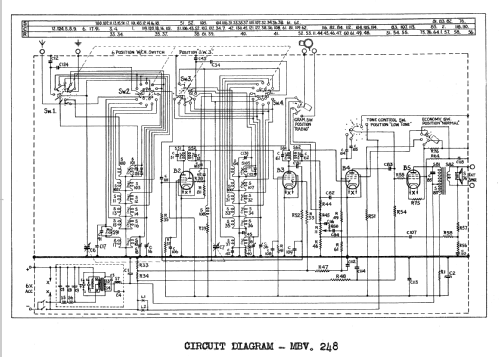

MBV-248; Mullard Wireless, (ID = 349984) Radio

MBV-248; Mullard Wireless, (ID = 349985) Radio
MBV-248; Mullard Wireless, (ID = 349983) Radio MBV-248; Mullard Wireless, (ID = 350024) Radio
MBV-248; Mullard Wireless, (ID = 1521841) Radio
Use red slider bar for more.
MBV-248; Mullard Wireless, (ID = 349983) Radio
Mullard Wireless,: MBV-248 [Radio] ID = 349983 609x472
Select picture or schematic to display from thumbnails on the right and click for download.
For model MBV-248, Mullard Wireless, London (see also Mullard Radio Valve)

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1948 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 EAF42 EAF42 EL42
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: MBV-248 - Mullard Wireless, London see
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 410 x 210 x 280 mm / 16.1 x 8.3 x 11 inch
Notes 5 short wave bands.
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Mentioned in -- Original-techn. papers.

Model page created by Mario Coelho. See "Data change" for further contributors.
