• Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 188136

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

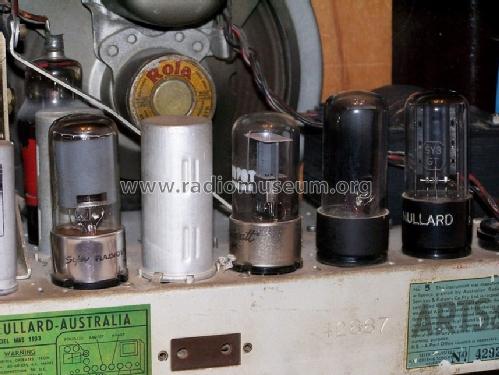

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 220-240; 250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: MAS1103 - Mullard Radio Company

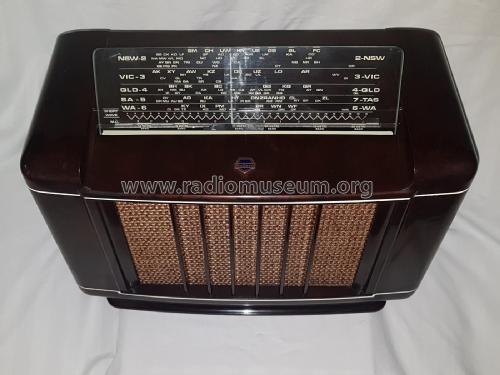

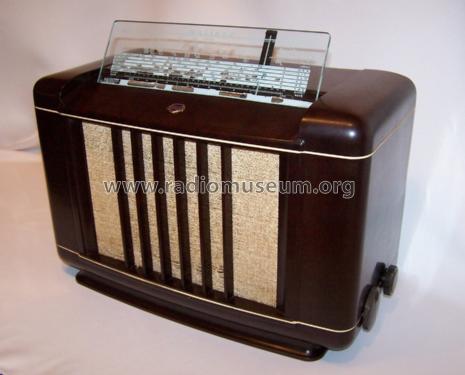

  • Shape
  • Tablemodel, low profile (big size).
  • Price in first year of sale
  • 32.00 AUS £
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. VII
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Mullard Master Radio Service Data.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
