LP1164/1

LP1164/1; Mullard Radio Valve (ID = 1910913) mod-past25

LP1164/1; Mullard Radio Valve (ID = 1910914) mod-past25

LP1164/1; Mullard Radio Valve (ID = 1910916) mod-past25
LP1164/1; Mullard Radio Valve (ID = 1910908) mod-past25 LP1164/1; Mullard Radio Valve (ID = 1910909) mod-past25
Use red slider bar for more.
LP1164/1; Mullard Radio Valve (ID = 1910908) mod-past25

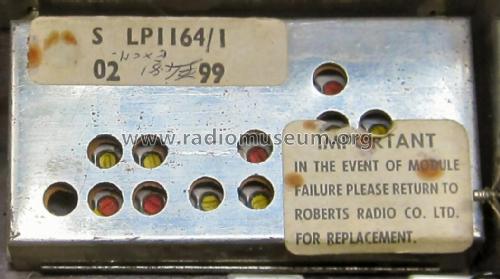

Mullard Radio Valve: LP1164/1 [mod-past25] ID = 1910908 1053x589
Select picture or schematic to display from thumbnails on the right and click for download.
For model LP1164/1, Mullard Radio Valve Co. Ltd.; :
photo with permission of owner

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Radio Valve Co. Ltd.;
Year: 1969 Category: Radio module post 1925 (not a part, not a key)
Semiconductors (the count is only for transistors) 3: AF114 AF115 AF115
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / 9.5 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: LP1164/1 - Mullard Radio Valve Co. Ltd.;
Material Metal case
Shape Chassis only or for «building in»
Notes

This complete IF module was used in some AM / FM transistor radios in the late 60's and early 70's. e.g. in the Roberts R707.

The later modules, as in the photo and marked with a 2 were supplied with AF125 AF127 AF127 transistors.



Model page created by Mike Edwards. See "Data change" for further contributors.
